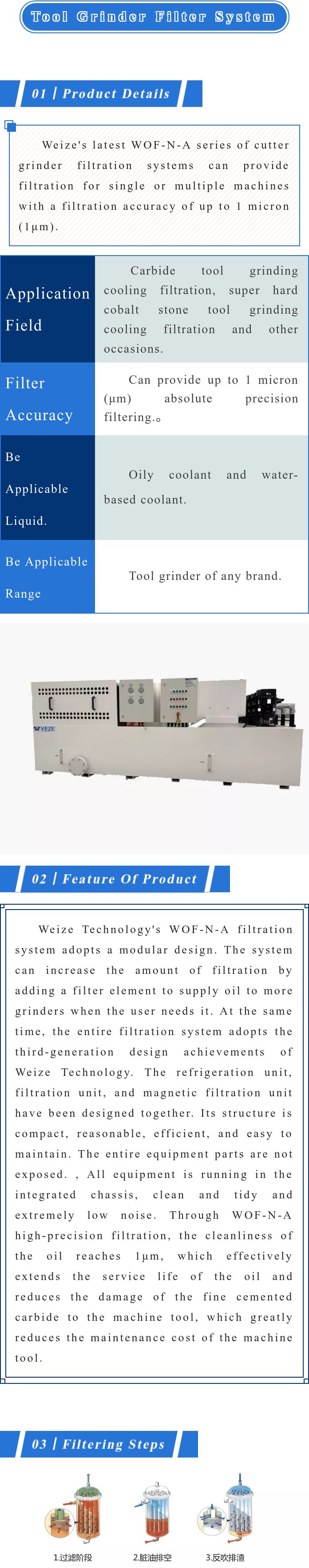

Wiese the new WOF-N-A series tool grinder filtration system can provide filtration for single or multiple machine, filtering accuracy up to a maximum of 1 micron (1μm).
 |
Application domain: Hard alloy tool grinding cooling filter, super hard cobalt carbide tool grinding cooling filter, etc.. Filtering accuracy: Can provide the highest to 1 micron (m) absolute precision filtration. Suitable liquid: Oil age but liquid and water cooling liquid. Tool grinding machine tool: Tool grinding machine for any brand. |
Product features
Wiese technology WOF-N-A filtration system uses modular design, the system under the needs of users can through the installation of filter increase the amount of filtering for more grinding machine oil. At the same time the whole filtering system using Wiese technology of the third generation of design results, has been the design of refrigeration unit, a filtering unit, magnetic filtration unit, combined together, and the utility model has the advantages of compact structure, reasonable, efficient and convenient maintenance, the entire equipment parts without exposed, all the equipment runs in the integrated chassis, clean and noise is extremely low. Through the WOF-N-A high precision filtration, oil cleanliness to reach 1 m, in the effective extension of the service life of the oil while reducing the damage to the fine carbide of the machine tool, greatly reducing the maintenance cost of the machine tool.
Filtering steps

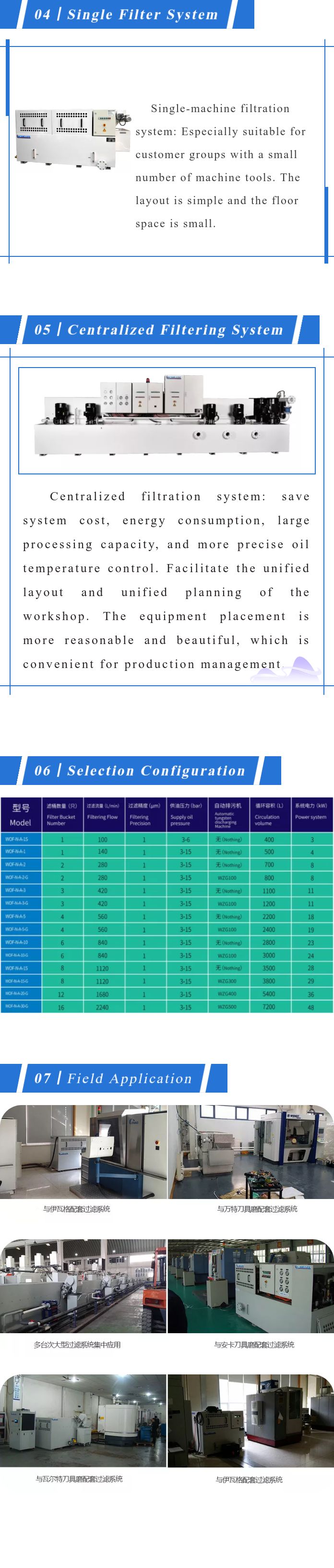

Field application



选型配置
Model | Filter bucket number (only) | Filter flow(L/min) | Filtering accuracy(µ m) | Supply pressure(bar) | Automatic tungsten discharging machine | Circulation volume(L) | Power system(kW) |
WOF-N-A-1S | 1 | 100 | 1 | 3-6 | nothing | 400 | 3 |
WOF-N-A-1S | 1 | 140 | 1 | 3-15 | nothing | 500 | 4 |
WOF-N-A-2 | 2 | 280 | 1 | 3-15 | nothing | 700 | 8 |
WOF-N-A-2-G | 2 | 280 | 1 | 3-15 | WZG100 | 800 | 8 |
WOF-N-A-3 | 3 | 420 | 1 | 3-15 | 无 | 1100 | 11 |
WOF-N-A-3-G | 3 | 420 | 1 | 3-15 | WZG100 | 1200 | 11 |
WOF-N-A-5 | 4 | 560 | 1 | 3-15 | nothing | 2200 | 18 |
WOF-N-A-5-G | 4 | 560 | 1 | 3-15 | WZG200 | 2400 | 19 |
WOF-N-A-10 | 6 | 840 | 1 | 3-15 | nothing | 2800 | 23 |
WOF-N-A-10-G | 6 | 840 | 1 | 3-15 | WZG300 | 3000 | 24 |
WOF-N-A-15 | 8 | 1120 | 1 | 3-15 | nothing | 3500 | 28 |
WOF-N-A-15-G | 8 | 1120 | 1 | 3-15 | WZG300 | 3800 | 29 |
WOF-N-A-20-G | 12 | 1680 | 1 | 3-15 | WZG400 | 5400 | 36 |
WOF-N-A-30-G | 16 | 2240 | 1 | 3-15 | WZG500 | 7200 | 48 |
